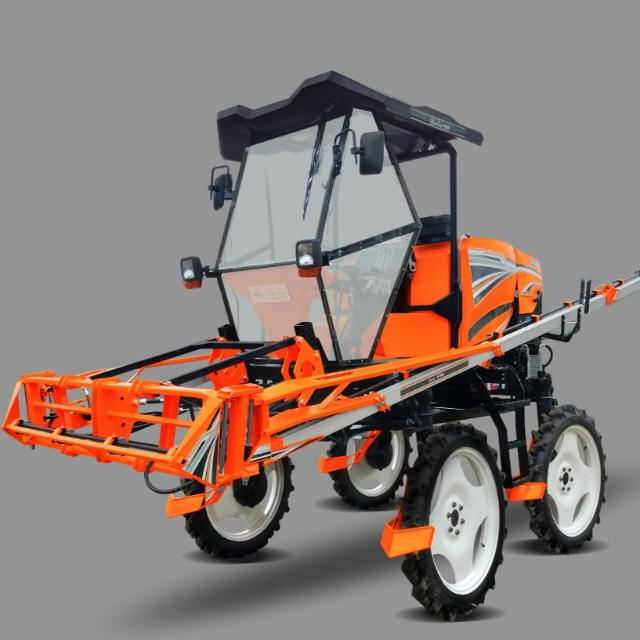

Self Propelled Boom Sprayer

Dimensions
Overall Length (mm)	4100
Overall Width (mm)	2050
Overall Height (mm)	3120
Wheelbase (mm)	1592
Tread (mm)	1400
Effective Ground Clearance (mm)	1065
Min. Ground Clearance (mm)	965

Engine
Engine Type	3-cylinder standing diesel engine
Engine Cooling	Water-cooled 4-cycle
Rated Output (kW(PS)/rpm)	26 HP/2700
Starting Method	Key starter (Battery 12 V DC)

Fuel
Fuel Type	Diesel
Fuel Tank Capacity (L)	35 L

Transmissions Details
Type	4WD.4WS
Steering System	Fully hydraulic power steering
Gear box drive	Hydro Static Transmission system (For variable shift and reverse forward movement), 2 shift gears

Speed
Traveling Speed (km/h)	Traveling: 0-14 Km/h
Spraying Speed	Spraying: 0-5.0 Km/h
Brake (also used as parking brake)	Wet, multi-disk, mechanical type
Tyre OD (mm)	1112
Tyre Width (mm)	116

Weight
Weight Dry. (Kg/lbs)	1400 KG aprox
Loaded Weight	2430 KG aprox

Pesticides or Chemical Holding Tank
Pesticides or Chemical Holding Tank Capacity (Ltr.)	1040 L

Agitation
Agitation Method	5x Mixture Diffuser Technology

Spray Pump
Type	Ceramic Piston plunger pump
Pump Revolution (rpm)	900
Suction Capacity (L/min)	70
Max. Pressure (Mpa/psi)	0-40
Working Pressure	0-10 Bar

Boom pesticides or chemicals control unit
Boom Height	3 stages Boom Height Adjustable With Additional 300 mm Manual Height Adjustment, 1.) 468-1698mm, 2.) 623-1852mm, 3.) 777-2007mm
Boom Feature	Both Swiveling booms opened/closed, individually
Nozzle Type	2 way Triple Action
Nozzle Discs	Ceramic 80° Hollow Cone & 110°Flat Fan(Both)
Nozzle Discs	Changeable (As require)
Number of Nozzles	24
Number of Divisions	3
Spraying Width (Meter)	12
Ground Clearance of Nozzles	468 mm-2007 mm
