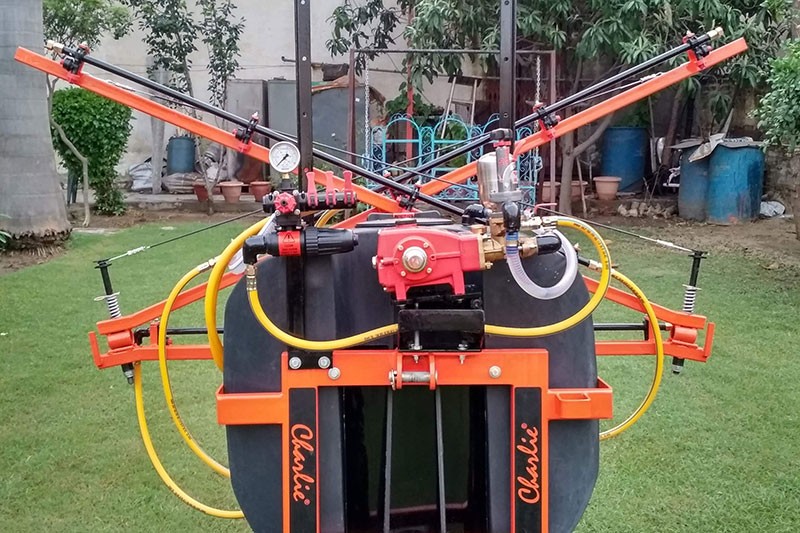

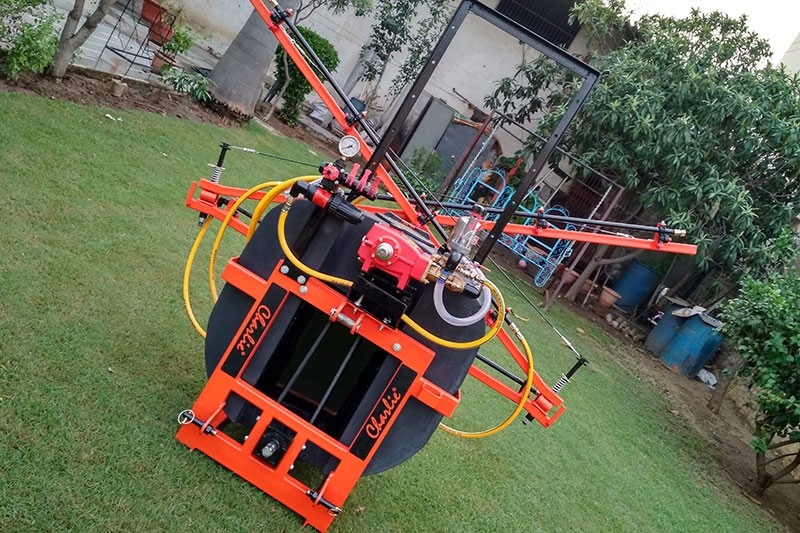

CH-200-B20
CH-200-B20
We, Jagatsukh Industries are the trusted Manufacturer and Exporter of India, We are meeting the requirements of numerous Farmers and Cultivators with high quality range of Tractor Mounted Sprayer, Knapsack Sprayer, Battery Sprayer, Trailer Sprayer, HTP Power Sprayer, Motorized Power Sprayer, Boom Sprayers etc.
We, Jagatsukh Industries are the trusted Manufacturer and Exporter of India, We are meeting the requirements of numerous Farmers and Cultivators with high quality range of Tractor Mounted Sprayer, Knapsack Sprayer, Battery Sprayer, Trailer Sprayer, HTP Power Sprayer, Motorized Power Sprayer, Boom Sprayers etc.
Technical Specifications : CH 200 B20
| Model | CH 200 B20 |
|---|---|
| Tank: | |
| Capacity | 200 litters |
| Material | Polyethylene |
| Agitation | Hydraulic |
| Level Indicator | Graduated transparent tube |

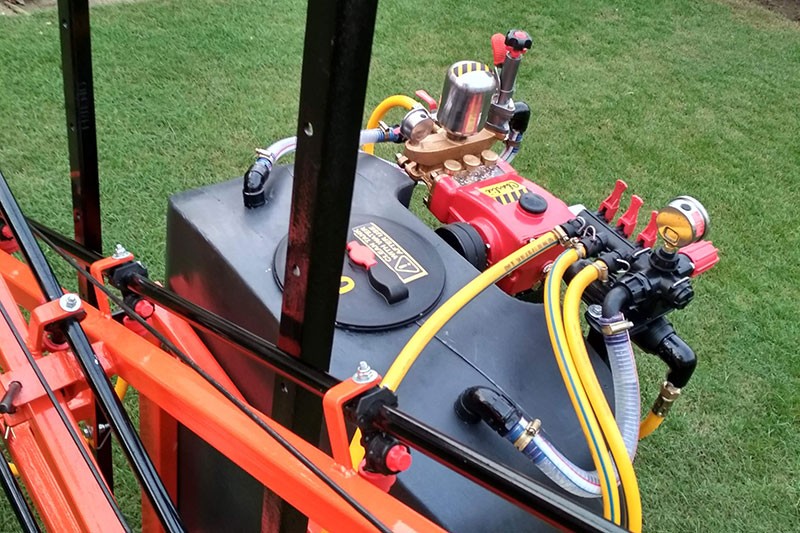

| Pump | |
|---|---|
| Type | Charlie® Triplex plunger pumping unit (Diaphragm Optional) |
| Capacity | 36 litter per minute |
| Working pressure Range | 40 bars or 600 PSI |
| Recommended working pressure | 1-10 bars or 15-300 PSI |
| RPM | 900 |
| Filters | |
|---|---|
| Capacity | 50 litters/minute |
| Mesh | 50 mesh |
| Flush out | Manually |
| Control Unit | |
|---|---|
| Manifold | 3 sections operated with Pressure gage, Pressure regulator valve |

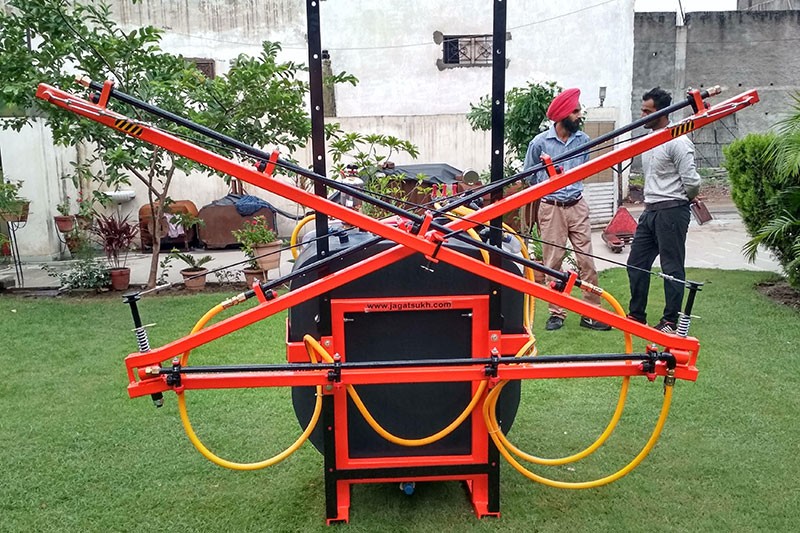

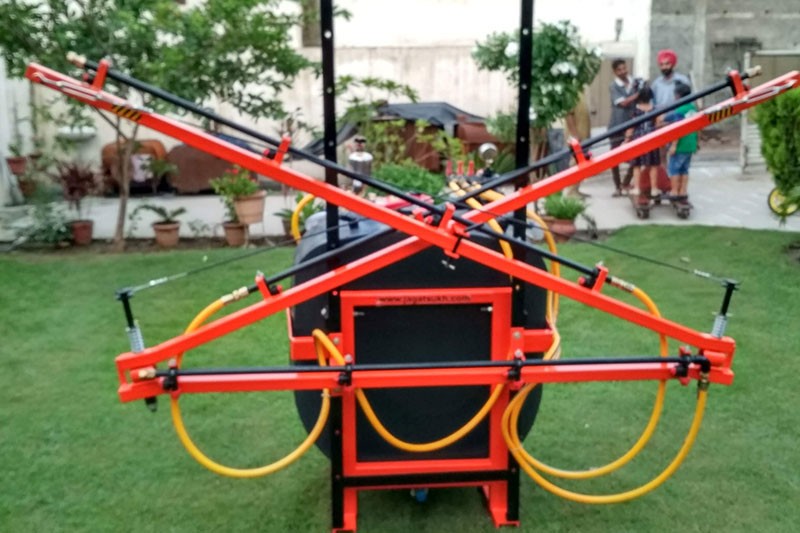

| Boom | |
|---|---|
| Width | 6 meters / 20’ feet |
| Height Adjustment | 24” inches (60 cm) (Note : Maximum 6’ feet Optional) |
| Type | Wet Boom |
| Actuation | Manual |
| Nozzle spacing | 20 inches (50 cm) |
| Number of nozzles | 21 nozzles |
| Nozzle Tip Brand & Material | Lechler® |
| Working speed | 2-6 km/hour |
| Extra Accessories | 3 no. of nozzles tips, tip filters, Pump Kit, Tool Box, Gas Kit Etc. |
| Dimensions | |
|---|---|
| Length x width x height | 30” x 71” 58” (76 x 180 x 147 cm) |
| Weight | 110 kg |
